Horizontal Panel Saw, With Horizontal Panel Saw, Servo Control Saw Car

Name: Horizontal Panel Saw With Horizontal Panel Saw Servo Control Saw Car
Brand: HOLD
Price: 1 USD

Quality Horizontal Panel Saw, With Horizontal Panel Saw, Servo Control Saw Car wholesale

Brand Name : HOLD

Model Number : HP330

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : LC/ TT

Supply Ability : 50 Sets / Month

Delivery Time : 30 Days

Packaging Details : Shrink flilm, iron pallet, wood tray

Overall dimensions : 7250x5560x1850mm

Main Saw Power : 15kw

After-sales service : Online remote support

Voltage : 380V/ 415V

Max. cutting dimension : 3300mm*3300mm

Style : Horizontal,Vertical

Usage : Woodworking

Condition : New

Type : Computer Panel Saw

Tilting saw blade : 90°

Main saw blade diameter : 400mm

Max. Cutting Thickness : 100mm

Number of Griper : 8 pcs

Contact Now

Horizontal Panel Saw, With Horizontal Panel Saw, Servo Control Saw Car HP330

Intelligent sizing, maximum efficiency and productivity(Front feeding computer panel saw)

Touch screen PC control
Independent motor for main saw (15kw)
Independent motor for grooving saw (2.2kW)
Blade carriage is driven by servo, with 4 sides supporting system to ensure even support and perfect cutting
Pneumatic side aligner in saw carriage support full travel
Quick replacement of saw blade
Controlled by industrial computer
Optimize typesetting software and label printer
First feeding table length is 2800mm

Model	HP330
Max. cutting length	3300mm
Max. cutting width	3300mm
Max. height of saw blade	100mm Intelligent lifting
Main saw blade	400x4.4x75x72T
Groove saw blade	160x4.3/3.2x45x24T
Blade carriage forward speed	5-80m/min
Blade carriage backward speed	5-100m/min
Gripper forward speed	5-80m/min
Gripper backward speed	5-100m/min
Side aligner	Pneumatic side aligner
Main saw shaft motor power	15kw
Motor power of grooving saw shaft	2.2kw
Saw servo motor	1.8kw
Feeding servo motor	1.8kw
Gripper quantity	8pcs
High pressure fan of air floating platform	2.2kw
Package size	5400x1350x1900mm 4800x920x1000mm
Machine footprint	7100x5000x1890mm
Weight	About 4000kg
Min. panel size	70x70mm
Total power	23kw

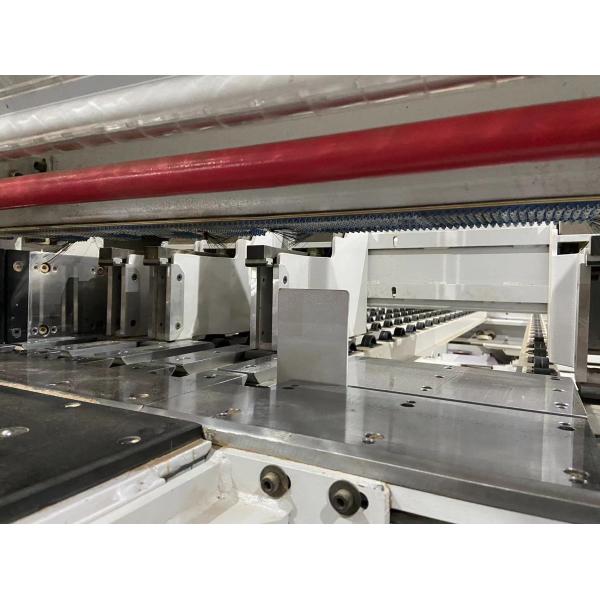

The computer panel saw is with servo control for accurate panel cutting:

Horizontal Panel Saw, With Horizontal Panel Saw, Servo Control Saw Car

With large touch screen for computer system:

Horizontal Panel Saw, With Horizontal Panel Saw, Servo Control Saw Car

Chrome coated table for long service life:

Horizontal Panel Saw, With Horizontal Panel Saw, Servo Control Saw Car
